The pole slots perfectly over the end bracket and fastens with a · simple, discreet screw to maintain the super-smooth lines of the system.
A centre bracket is recommended for any French pole over 100cm. You can use more than one centre bracket with “C” passing rings on 28mm poles to allow for longer length poles or for heavier weight curtains.
Code
Description
Backplate dimensions
Code
Description
Backplate dimensions
Minimum projection
Maximum projection

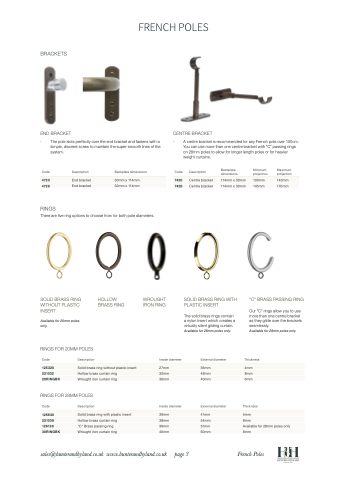

FRENCH POLES
BRACKETS
END BRACKET
CENTRE BRACKET
4720
End bracket
30mm x 114mm
4728
End bracket
30mm x 114mm
7420
Centre bracket
114mm x 30mm
100mm
140mm
7428
Centre bracket
114mm x 30mm
145mm
170mm
RINGS
There are five ring options to choose from for both pole diameters.
SOLID BRASS RING WITHOUT PLASTIC INSERT
Available for 20mm poles only.
RINGS FOR 20MM POLES
Code Description
RINGS FOR 28MM POLES
Code Description
HOLLOW BRASS RING
WROUGHT IRON RING
SOLID BRASS RING WITH PLASTIC INSERT
The solid brass rings contain a nylon insert which creates a virtually silent gliding curtain. Available for 28mm poles only.
External diameter
External diameter
“C” BRASS PASSING RING
Our "C" rings allow you to use more than one centre bracket as they glide over the brackets seamlessly.
Available for 28mm poles only.
Thickness
Thickness
Inside diameter
Inside diameter
125320
Solid brass ring without plastic insert
27mm
36mm
4mm
221032
Hollow brass curtain ring
32mm
48mm
8mm
20RINGBK
Wrought iron curtain ring
30mm
40mm
6mm
125630
Solid brass ring with plastic insert
39mm
41mm
5mm
221038
Hollow brass curtain ring
38mm
54mm
8mm
126128
"C" Brass passing ring
39mm
51mm
Available for 28mm poles only
30RINGBK
Wrought iron curtain ring
45mm
60mm
8mm
sales@hunterandhyland.co.uk www.hunterandhyland.co.uk page 3
French Poles
