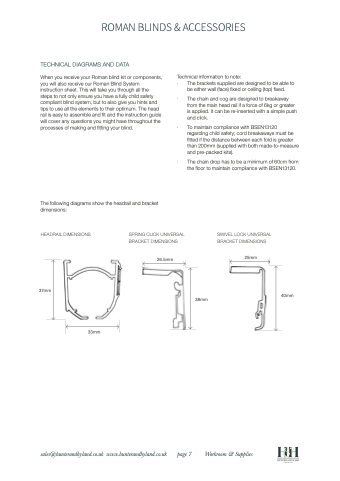

TECHNICAL DIAGRAMS AND DATA
When you receive your Roman blind kit or components, you will also receive our Roman Blind System instruction sheet. This will take you through all the
steps to not only ensure you have a fully child safety compliant blind system, but to also give you hints and tips to use all the elements to their optimum. The head rail is easy to assemble and fit and the instruction guide will cover any questions you might have throughout the processes of making and fitting your blind.
The following diagrams show the headrail and bracket dimensions:
Technical information to note:
HEADRAIL DIMENSIONS
37mm
33mm
SPRING CLICK UNIVERSAL BRACKET DIMENSIONS
26.5mm
ROMAN BLINDS & ACCESSORIES
· ·
·
·
The brackets supplied are designed to be able to be either wall (face) fixed or ceiling (top) fixed.
The chain and cog are designed to breakaway from the main head rail if a force of 6kg or greater is applied. It can be re-inserted with a simple push and click.
To maintain compliance with BSEN13120 regarding child safety; cord breakaways must be fitted if the distance between each fold is greater than 200mm (supplied with both made-to-measure and pre-packed kits).
The chain drop has to be a minimum of 60cm from the floor to maintain compliance with BSEN13120.
SWIVEL LOCK UNIVERSAL BRACKET DIMENSIONS
25mm
38mm
40mm
