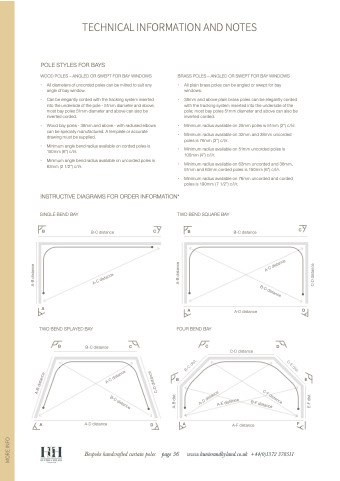

TECHNICAL INFORMATION AND NOTES
POLE STYLES FOR BAYS
WOOD POLES – ANGLED OR SWEPT FOR BAY WINDOWS
· All diameters of uncorded poles can be mitred to suit any angle of bay window.
· Can be elegantly corded with the tracking system inserted into the underside of the pole - 51mm diameter and above; most bay poles 51mm diameter and above can also be inverted corded.
· Wood bay poles - 38mm and above - with radiused elbows can be specially manufactured. A template or accurate drawing must be supplied.
· Minimum angle bend radius available on corded poles is 150mm (6”) c/l/r.
· Minimum angle bend radius available on uncorded poles is 63mm (2 1/2”) c/l/r.
BRASS POLES – ANGLED OR SWEPT FOR BAY WINDOWS
· All plain brass poles can be angled or swept for bay windows.
· 38mm and above plain brass poles can be elegantly corded with the tracking system inserted into the underside of the pole; most bay poles 51mm diameter and above can also be inverted corded.
· Minimum radius available on 25mm poles is 51mm (2”) c/l/r.
· Minimum radius available on 32mm and 38mm uncorded poles is 76mm (3”) c/l/r.
· Minimum radius available on 51mm uncorded poles is 100mm (4”) c/l/r.
· Minimum radius available on 63mm uncorded and 38mm, 51mm and 63mm corded poles is 150mm (6”) c/l/r.
· Minimum radius available on 76mm uncorded and corded poles is 190mm (7 1/2”) c/l/r.
INSTRUCTIVE DIAGRAMS FOR ORDER INFORMATION*
SINGLE BEND BAY
B
B-C distance
A-C distance
TWO BEND SQUARE BAY
C B
B-C distance
C
C-D distance
D-E dist.
A-B distance
A-B distance
FOUR BEND BAY
A
A
A-D distance
C-D distance
D
TWO BEND SPLAYED BAY
B
B-C distance C
A-C distance
B-D distance
C
D
A-C distance
B-D distance
A-B distance
A
C-D distance
A-B dist.
D
Bespoke handcrafted curtain poles
page 56
B-C dist.
BE
C-F distance
B-F distance
A-F distance F www.hunterandhyland.co.uk +44(0)1372 378511
A-D distance
A
A-D distance A-E distance
E-F dist.
