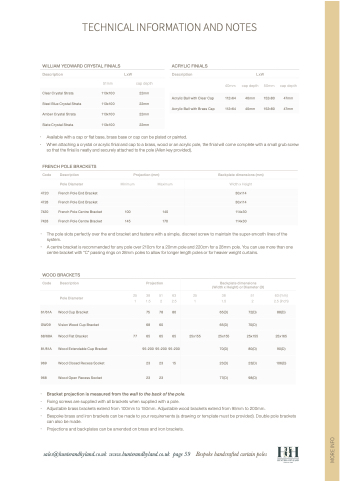

TECHNICAL INFORMATION AND NOTES
WILLIAM YEOWARD CRYSTAL FINIALS
Description
51mm
· Available with a cap or flat base, brass base or cap can be plated or painted.
LxW
ACRYLIC FINIALS
Description LxW
40mm cap depth 50mm cap depth
cap depth
Clear Crystal Strata
113x100
22mm
Steel Blue Crystal Strata
113x100
22mm
Amber Crystal Strata
113x100
22mm
Slate Crystal Strata
113x100
22mm
Acrylic Ball with Clear Cap
112x64
40mm
152x80
47mm
Acrylic Ball with Brass Cap
112x64
40mm
152x80
47mm
· When attaching a crystal or acrylic finial and cap to a brass, wood or an acrylic pole, the finial will come complete with a small grub screw so that the finial is neatly and securely attached to the pole (Allen key provided).
FRENCH POLE BRACKETS
Code Description Projection (mm) Backplate dimensions (mm)
Pole Diameter Minimum Maximum Width x Height
· The pole slots perfectly over the end bracket and fastens with a simple, discreet screw to maintain the super-smooth lines of the system.
· A centre bracket is recommended for any pole over 210cm for a 20mm pole and 220cm for a 28mm pole. You can use more than one centre bracket with “C” passing rings on 28mm poles to allow for longer length poles or for heavier weight curtains.
4720
French Pole End Bracket
30x114
4728
French Pole End Bracket
30x114
7420
French Pole Centre Bracket
100
140
114x30
7428
French Pole Centre Bracket
145
170
114x30
WOOD BRACKETS
Code Description
Pole Diameter
Projection Backplate dimensions (Width x Height) or Diameter (D)
25 38 51 63 25 38 51 63(mm) 1 1.5 2 2.5 1 1.5 2 2.5 (inch)
61/61A
Wood Cup Bracket
75
78
80
65(D)
72(D)
88(D)
GW09
Vision Wood Cup Bracket
68
60
65(D)
70(D)
68/68A
Wood Flat Bracket
77
65
65
65
25x155
25x155
25x155
25x165
81/81A
Wood Extendable Cup Bracket
95-200
95-200
95-200
70(D)
80(D)
90(D)
969
Wood Closed Recess Socket
23
23
15
23(D)
23(D)
106(D)
968
Wood Open Recess Socket
23
23
77(D)
98(D)
· Bracket projection is measured from the wall to the back of the pole.
· Fixing screws are supplied with all brackets when supplied with a pole.
· Adjustable brass brackets extend from 100mm to 150mm. Adjustable wood brackets extend from 95mm to 200mm.
· Bespoke brass and iron brackets can be made to your requirements (a drawing or template must be provided). Double pole brackets can also be made.
· Projections and backplates can be amended on brass and iron brackets.
sales@hunterandhyland.co.uk www.hunterandhyland.co.uk page 59 Bespoke handcrafted curtain poles
