Code Description
POLE FINIALS
BRACKETS
RINGS
Stock
unit Made from
Dimensions (length x width)
Wood- screw gauge
No. fixing holes
Base Base Projection dimensions diameter

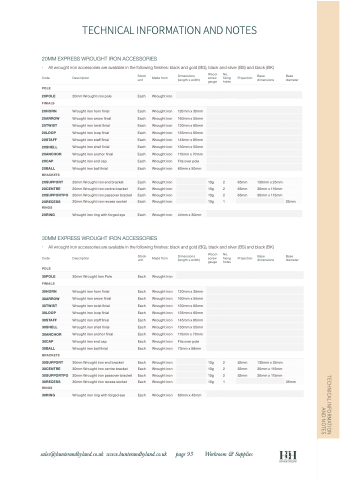

TECHNICAL INFORMATION AND NOTES
20MM EXPRESS WROUGHT IRON ACCESSORIES
· All wrought iron accessories are available in the following finishes: black and gold (BG), black and silver (BS) and black (BK)
20POLE
20mm Wrought iron pole
Each
Wrought iron
20HORN
Wrought iron horn finial
Each
Wrought iron
120mm x 35mm
20ARROW
Wrought iron arrow finial
Each
Wrought iron
160mm x 55mm
20TWIST
Wrought iron twist finial
Each
Wrought iron
130mm x 60mm
20LOOP
Wrought iron loop finial
Each
Wrought iron
135mm x 65mm
20STAFF
Wrought iron staff finial
Each
Wrought iron
145mm x 85mm
20SHELL
Wrought iron shell finial
Each
Wrought iron
130mm x 55mm
20ANCHOR
Wrought iron anchor finial
Each
Wrought iron
115mm x 70mm
20CAP
Wrought iron end cap
Each
Wrought iron
Fits over pole
20BALL
Wrought iron ball finial
Each
Wrought iron
60mm x 50mm
20SUPPORT
20mm Wrought iron end bracket
Each
Wrought iron
10g
2
65mm
130mm x 25mm
20CENTRE
20mm Wrought iron centre bracket
Each
Wrought iron
10g
2
65mm
30mm x 115mm
20SUPPORTPO
20mm Wrought iron passover bracket
Each
Wrought iron
10g
2
65mm
30mm x 115mm
20RECESS
20mm Wrought iron recess socket
Each
Wrought iron
10g
1
25mm
20RING
Wrought iron ring with forged eye
Each
Wrought iron
44mm x 30mm
30MM EXPRESS WROUGHT IRON ACCESSORIES
· All wrought iron accessories are available in the following finishes: black and gold (BG), black and silver (BS) and black (BK)
Code Description
POLE FINIALS
BRACKETS
RINGS
Stock
unit Made from
Dimensions (length x width)
Wood- screw gauge
No. fixing holes
Projection
Base Base dimensions diameter
30POLE
30mm Wrought Iron Pole
Each
Wrought Iron
30HORN
Wrought iron horn finial
Each
Wrought iron
120mm x 35mm
30ARROW
Wrought iron arrow finial
Each
Wrought iron
160mm x 55mm
30TWIST
Wrought iron twist finial
Each
Wrought iron
130mm x 60mm
30LOOP
Wrought iron loop finial
Each
Wrought iron
135mm x 65mm
30STAFF
Wrought iron staff finial
Each
Wrought iron
145mm x 85mm
30SHELL
Wrought iron shell finial
Each
Wrought iron
130mm x 55mm
30ANCHOR
Wrought iron anchor finial
Each
Wrought iron
115mm x 70mm
30CAP
Wrought iron end cap
Each
Wrought iron
Fits over pole
30BALL
Wrought iron ball finial
Each
Wrought iron
73mm x 58mm
30SUPPORT
30mm Wrought iron end bracket
Each
Wrought iron
10g
2
52mm
130mm x 25mm
30CENTRE
30mm Wrought iron centre bracket
Each
Wrought iron
10g
2
52mm
30mm x 115mm
30SUPPORTPO
30mm Wrought iron passover bracket
Each
Wrought iron
10g
2
52mm
30mm x 115mm
30RECESS
30mm Wrought iron recess socket
Each
Wrought iron
10g
1
35mm
30RING
Wrought iron ring with forged eye
Each
Wrought iron
60mm x 45mm
sales@hunterandhyland.co.uk www.hunterandhyland.co.uk
page 93
